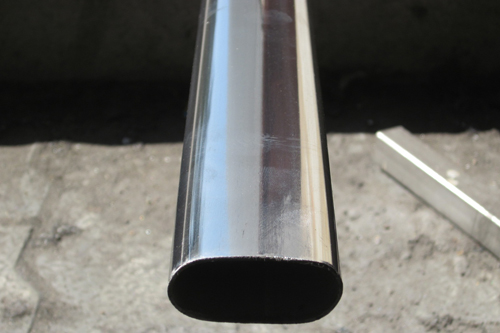

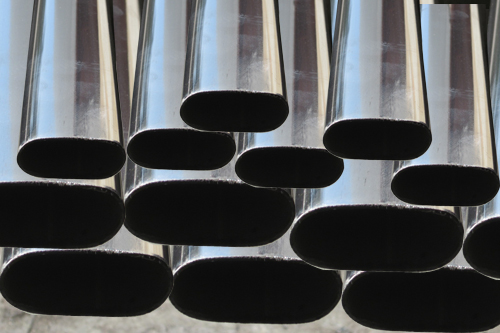

Owl Pipe

We also provide Stainless Steel Seamless Pipes

Application

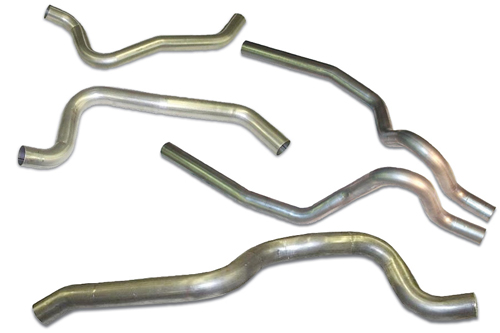

Automobile Accessories

Pharmaceuticals Industries

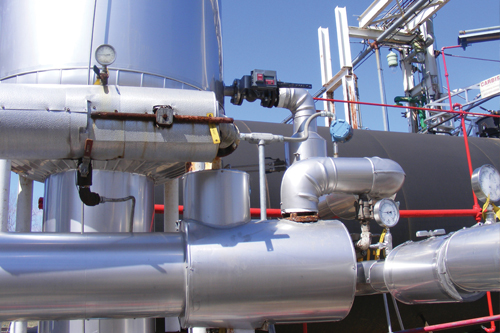

Chemicals Industries

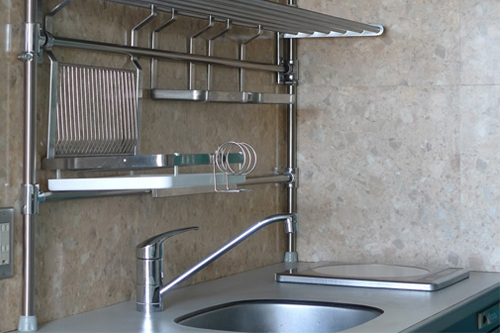

Kitchen Accessories

Sugar Industries

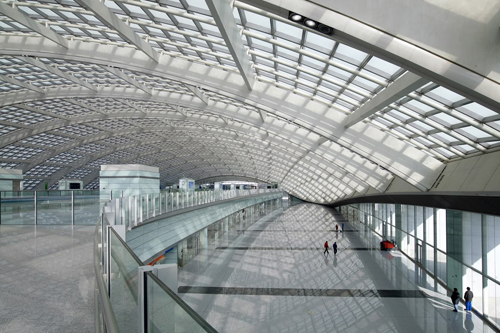

Railways / Airport

Size Inch. O.D. MM 10G (3.25) 12G(2.64) 14G(2.03) 16G(1.62) 18G(1.21) 20G(0.91) 22G(0.71)
1/4" 6.35 0.075 0.70 0.065 0.058 0.046 0.037 0.030
6/16" 7.93 0.114 0.105 0.089 0.079 0.080 0.048 0.038
3/8" 9.52 0.152 0.135 0.113 0.097 0.080 0.058 0.046
1/2" 12.7 0.226 0.200 0.167 0.134 0.105 0.079 0.063
3/4" 19.05 0.386 0.326 0.256 0.215 0.161 0.124 0.097
1" 25.4 0.541 0.450 0.351 0.294 0.218 0.167 0.131
1.1/4" 31.82 0.696 0.580 0.448 0.375 0.275 0.200 0.150
1.1/2" 38.1 0.851 0.700 0.542 0.452 0.332 0.270 0.185
1.3/4" 44.45 1.020 0.832 0.656 0.530 0.390 0.330 0.265
2" 50.8 1.161 0.960 0.733 0.607 0.447 0.365 -
2.1/4" 57.15 1.315 1.085 0.828 0.687 0.504 - -
2.1/2" 63.5 1.472 1.210 0924 0.792 0.562 0.450 -
2.3/4" 69.85 1.630 1.338 1.022 0.847 0.619 0.495 -
3" 76.2 1.782 1.460 1.115 0.924 0.676 0.540 -
3.1/2" 88.9 2.092 1.718 1.306 1.082 0.791 - -
4" 101.6 2.403 1.971 1.497 1.239 0.905 - -
4.1/2" 114.3 2.713 2.224 1.688 1.397 1.020 - -
5" 127.0 3.023 2.477 1.879 1.554 1.134 - -
5.1/2" 139.7 3.336 2.760 2.070 1.713 1.250 - -
6" 152.4 3.654 2.983 2.261 1.875 1.364 - -
6.1/2" 165.1 3.975 2.256 2.452 2.028 1.478 - -

Stainless Steel Pipe Series ( Ansi B 36, 10, B 36, 19)

Nominal Pipe Size in Outside Diameter ASTM Wall Thickness and Weight
Sch. 5 S Sch. 10 S Sch. 40 S Sch. 80 S Sch. 160 Sch. XX
mm mm kg/m mm kg/m mm kg/m mm kg/m mm kg/m mm kg/m
1/8 10.29 - - 1.24 0.280 1.73 0.370 2.41 0.475 - - - -
1/4 13.72 - - 1.65 0.498 2.24 0.643 3.02 0.808 - - - -
3/8 17.15 - - 1.65 0.640 2.31 0.857 3.20 1.116 - - - -
1/2 21.34 1.65 0.812 2.11 1.014 2.77 1.286 3.73 1.642 4.78 1.979 7.47 2.59
3/4 26.67 1.65 1.032 2.11 1.300 2.87 1.708 3.91 2.225 5.56 2.934 7.82 3.69
1 33.40 1.65 1.310 2.77 2.121 3.38 2.537 4.55 3.282 6.35 4.494 9.09 5.52
11/4 42.16 1.65 1.671 2.77 2.728 3.56 3.435 4.85 4.524 6.35 5.685 9.70 7.87
11/2 48.26 1.65 1.923 2.77 3.150 3.68 4.101 5.08 5.484 7.14 7.339 10.16 9.68
2 60.33 1.65 2.421 2.77 3.986 3.91 5.515 5.54 7.588 8.71 11.24 11.07 13.63
21/2 73.03 2.11 3.741 3.05 5.336 5.16 8.756 7.01 11.570 9.52 15.115 14.02 20.68
3 88.90 2.11 4.578 3.05 6.546 5.49 11.448 7.62 15.484 11.13 21.639 15.24 28.06
31/2 101.60 2.11 5.248 3.05 7.514 5.74 13.756 8.08 18.891 - - - -
4 114.30 2.11 5.918 3.05 8.483 6.02 16.296 8.56 22.628 13.49 33.99 17.12 41.59
5 141.30 2.77 9.593 3.40 11.721 6.55 22.065 9.52 31.364 15.87 49.76 19.05 58.22
6 168.28 2.77 11.451 3.40 14.014 7.11 28.658 10.97 43.142 18.24 68.42 21.95 80.30
8 219.08 2.77 14.979 3.76 20.240 8.18 43.129 12.70 65.526 23.01 112.79 22.23 109.40
10 273.05 3.40 22.920 4.19 28.163 9.27 61.131 12.70 82.661 28.57 174.62 - -
12 323.85 3.96 31.669 4.57 36.477 9.52 74.810 12.70 98.79 33.32 242.01 - -
14 355.60 - - 4.78 41.923 11.13 95.84 19.05 160.28 35.71 285.58 - -
16 406.40 - - 4.78 47.993 12.70 124.99 - - - - - -
18 457.20 - - 4.78 54.064 14.20 157.26 - - - - - -
20 508.00 - - 5.54 69.590 15.09 185.95 - - - - - -
