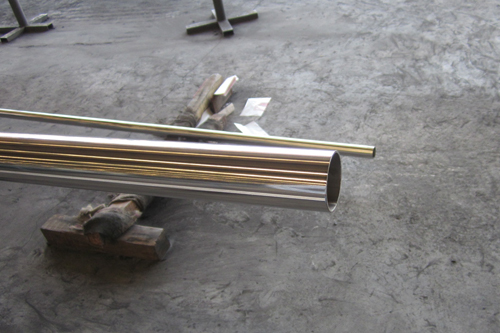

Among all other steel pipes, round steel pipes are used more frequently. In the construction industry, these round steel pipes are used most widely. For building sewages and water pipes, these steel round pipes are used. According to the different applications, the round steel pipes have different diameters. Whenever, any customization is needed, these pipes can be customized very easily.

These steel pipes are available in different thickness, different diameter length, and in different quality. Generally, these rounded steel pipes have high corrosion resistance capacity, high deformability, high toughness and higher strength.

While measuring the diameter of a round steel pipe, the outside as well as the inside diameters should be measure separately. The difference between these two values, is the length of the diameter of the round steel pipe. The thickness of the wall of this type of pipes, determines the pipe size.

We also provide Stainless Steel Seamless Pipes

Application

Size Inch.	O.D. MM	10G (3.25)	12G(2.64)	14G(2.03)	16G(1.62)	18G(1.21)	20G(0.91)	22G(0.71)
1/4"	6.35	0.075	0.70	0.065	0.058	0.046	0.037	0.030
6/16"	7.93	0.114	0.105	0.089	0.079	0.080	0.048	0.038
3/8"	9.52	0.152	0.135	0.113	0.097	0.080	0.058	0.046
1/2"	12.7	0.226	0.200	0.167	0.134	0.105	0.079	0.063
3/4"	19.05	0.386	0.326	0.256	0.215	0.161	0.124	0.097
1"	25.4	0.541	0.450	0.351	0.294	0.218	0.167	0.131
1.1/4"	31.82	0.696	0.580	0.448	0.375	0.275	0.200	0.150
1.1/2"	38.1	0.851	0.700	0.542	0.452	0.332	0.270	0.185
1.3/4"	44.45	1.020	0.832	0.656	0.530	0.390	0.330	0.265
2"	50.8	1.161	0.960	0.733	0.607	0.447	0.365	-
2.1/4"	57.15	1.315	1.085	0.828	0.687	0.504	-	-
2.1/2"	63.5	1.472	1.210	0924	0.792	0.562	0.450	-
2.3/4"	69.85	1.630	1.338	1.022	0.847	0.619	0.495	-
3"	76.2	1.782	1.460	1.115	0.924	0.676	0.540	-
3.1/2"	88.9	2.092	1.718	1.306	1.082	0.791	-	-
4"	101.6	2.403	1.971	1.497	1.239	0.905	-	-
4.1/2"	114.3	2.713	2.224	1.688	1.397	1.020	-	-
5"	127.0	3.023	2.477	1.879	1.554	1.134	-	-
5.1/2"	139.7	3.336	2.760	2.070	1.713	1.250	-	-
6"	152.4	3.654	2.983	2.261	1.875	1.364	-	-
6.1/2"	165.1	3.975	2.256	2.452	2.028	1.478	-	-

Stainless Steel Pipe Series ( Ansi B 36, 10, B 36, 19)

Nominal Pipe Size in	Outside Diameter ASTM	Wall Thickness and Weight
		Sch. 5 S		Sch. 10 S		Sch. 40 S		Sch. 80 S		Sch. 160		Sch. XX
	mm	mm	kg/m	mm	kg/m	mm	kg/m	mm	kg/m	mm	kg/m	mm	kg/m
1/8	10.29	-	-	1.24	0.280	1.73	0.370	2.41	0.475	-	-	-	-
1/4	13.72	-	-	1.65	0.498	2.24	0.643	3.02	0.808	-	-	-	-
3/8	17.15	-	-	1.65	0.640	2.31	0.857	3.20	1.116	-	-	-	-
1/2	21.34	1.65	0.812	2.11	1.014	2.77	1.286	3.73	1.642	4.78	1.979	7.47	2.59
3/4	26.67	1.65	1.032	2.11	1.300	2.87	1.708	3.91	2.225	5.56	2.934	7.82	3.69
1	33.40	1.65	1.310	2.77	2.121	3.38	2.537	4.55	3.282	6.35	4.494	9.09	5.52
11/4	42.16	1.65	1.671	2.77	2.728	3.56	3.435	4.85	4.524	6.35	5.685	9.70	7.87
11/2	48.26	1.65	1.923	2.77	3.150	3.68	4.101	5.08	5.484	7.14	7.339	10.16	9.68
2	60.33	1.65	2.421	2.77	3.986	3.91	5.515	5.54	7.588	8.71	11.24	11.07	13.63
21/2	73.03	2.11	3.741	3.05	5.336	5.16	8.756	7.01	11.570	9.52	15.115	14.02	20.68
3	88.90	2.11	4.578	3.05	6.546	5.49	11.448	7.62	15.484	11.13	21.639	15.24	28.06
31/2	101.60	2.11	5.248	3.05	7.514	5.74	13.756	8.08	18.891	-	-	-	-
4	114.30	2.11	5.918	3.05	8.483	6.02	16.296	8.56	22.628	13.49	33.99	17.12	41.59
5	141.30	2.77	9.593	3.40	11.721	6.55	22.065	9.52	31.364	15.87	49.76	19.05	58.22
6	168.28	2.77	11.451	3.40	14.014	7.11	28.658	10.97	43.142	18.24	68.42	21.95	80.30
8	219.08	2.77	14.979	3.76	20.240	8.18	43.129	12.70	65.526	23.01	112.79	22.23	109.40
10	273.05	3.40	22.920	4.19	28.163	9.27	61.131	12.70	82.661	28.57	174.62	-	-
12	323.85	3.96	31.669	4.57	36.477	9.52	74.810	12.70	98.79	33.32	242.01	-	-
14	355.60	-	-	4.78	41.923	11.13	95.84	19.05	160.28	35.71	285.58	-	-
16	406.40	-	-	4.78	47.993	12.70	124.99	-	-	-	-	-	-
18	457.20	-	-	4.78	54.064	14.20	157.26	-	-	-	-	-	-
20	508.00	-	-	5.54	69.590	15.09	185.95	-	-	-	-	-	-
